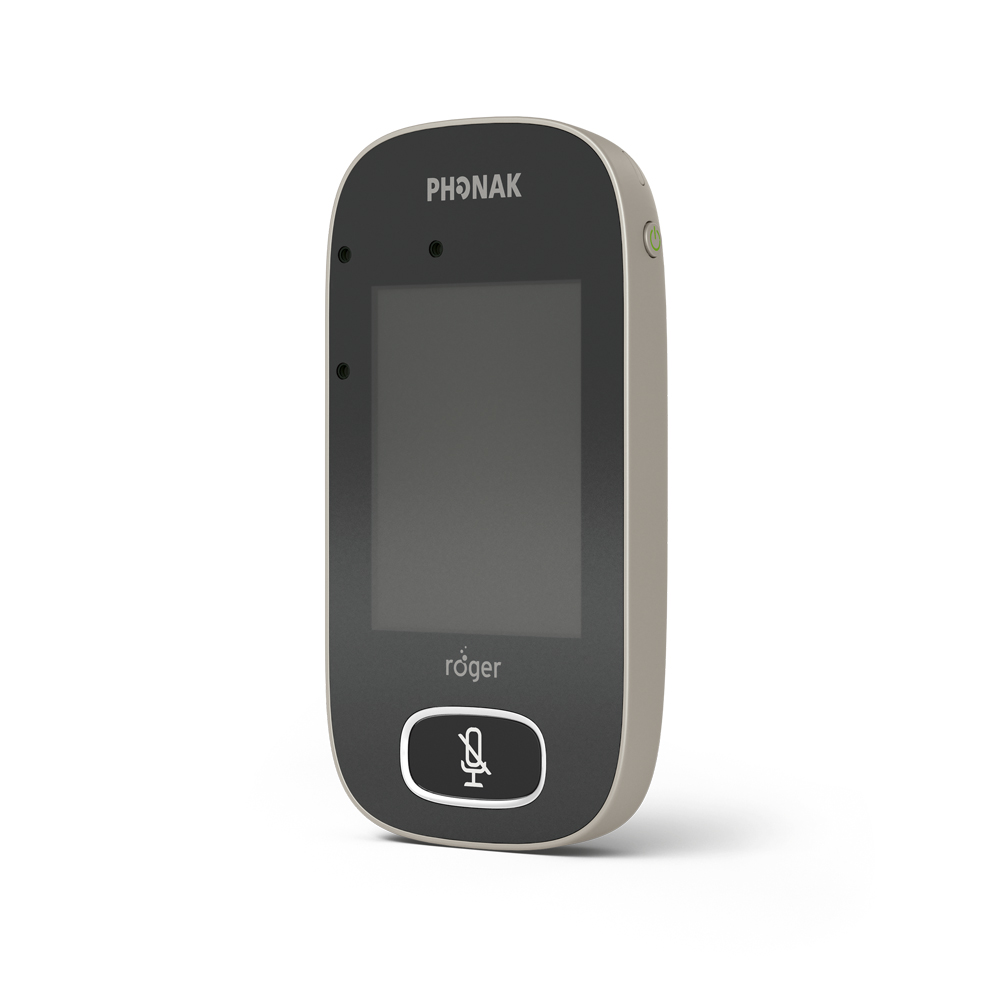

What is new in the Roger Touchscreen Mic 3 unlimited transmitter?
a) The Roger Touchscreen 3 is now able to install an unlimited number of Roger Direct (02) receivers into compatible Phonak hearing aids - non Phonak hearing aids can keep using Roger X receivers
b) There is a new improved menu structure
c) The brightness of the mute light is now adjustable
Compatibility with other Roger products eg Passaround Mic, DigiMasters etc. & previous Touchcreen Mics is unchanged and the same spares and accessories can be used.

The Roger Touchscreen Mic 3 unlimited is ideal for any student in an interactive modern classroom, providing better access to teacher and peer communication, boosting speech understanding and engagement in all activities.

This easy to use wireless teacher microphone gives students and teachers alike the opportunity to master various modern classroom activities with ease.

The Touchsceen mic 3 wirelessly transmits a speakers voice directly to the receiver, offering speech-in-noise improvements.

Designed to be used in education, the Roger Touchscreen Mic 3 maintains a modern, stylish appearance as well as excellent durability. It also has an easy-to-use, intuitive interface with touchscreen, indicator light and handy icons for quick access to Roger functions.

It provides both teachers and students with a simple yet effective indication of when the microphone is powered on and muted.

Roger Touchscreen Mic 3 features include:

• Top performer - up to 54% improvement of speech understanding over other FM systems
• Automatically switches from an individual talker to a small group interaction mode, depending on its placement
• Intuitive indicator lights and user-friendly interface
• Small group mode utilizes a system of 3 intelligent embedded microphones working together in an advanced and adaptive way
• Automatic microphone modes: Automatic (default), Small Group, Pointing, Lanyard
• Pointing mode allows a student to simply point the microphone in the direction of the teacher to capture their voice (range: 4m/13’)

Automatic microphone function conveniently switches from an individual speaker to a small group interaction mode, based on the orientation of the device allowing students and teachers to keep up with the ever-changing learning environments.

The Roger Touchscreen Mic is compatible with almost every hearing instrument, cochlear implant and bone-anchored hearing device via an appropriate receiver. It also allows multiple receivers and microphones to be connected in a network with simple touch commands.

Non Phonak Roger Direct hearing aids will require a Roger X receiver & direct input shoe.

The free Roger Upgrader software helps you to upgrade the firmware and manage multiple devices

We are pleased to include some Touchscreen Mic drawings by Karissa Patel, a local artist who had her first Cochlear Implant at 13 months.   You can see more of Karissa’s drawings on Instagram.

Roger Touchsceen Mic 3 includes: Roger Touchscreen Mic 3, screen protector (already in place), UK power supply (with micro USB cable), lanyard, soft pouch, 3.5mm audio cable- approx 1m, recording cable and user guide

Phonak product code: 056-3034-P5

Technical Data Roger Touchscreen Mic 3 Unlimited

The interface makes Roger Touchscreen Mic simple and intuitive to use in the classroom and allows both the teacher and students to easily know the microphone is working and transmitting. Voice of the teacher or parent, especially in noisy conditions, is directly heard in the ears. Small group learning activities are accessible to all children.

Features

• Usability
• Touchscreen
• Intuitive icons for quick access to Roger function
• Easy swipe technology to scroll through menu
• Indicator lights
• Obvious On/Off and Mute

MultiTalker Network
Co-teacher microphones
Students pass-around microphones
Roger Multimedia Hub

3 microphones
Automatic microphone modes (Automatic, Small Group, Pointing, Lanyard)
System of three intelligent embedded microphones for small group activities.

General information
Dimensions (L x W x H): 104 x 55 x 16 mm (4.1" x 2.1" x 0.6")
Weight: 94 g (0.2 lbs)
Colour: Champagne/ black
Operating conditions: 0 ° to + 45 ° Celsius (+32 ° to +113 ° Fahrenheit) and relative humidity of <95% (non condensing)
Transport and storage conditions: -20 ° to +60 ° Celsius (-4 ° to +140 ° Fahrenheit) and relative humidity of 90% for a long period

Power and battery information
Battery: Lithium polymer 3.7 V DC
Charging time: Approx. 2 hours. Charging time depends on battery state
Capacity: 1200 mAh
Operating time: Approx. 10 hours. Remaining operating time is displayed in the status bar
Charger: 100 - 240 V
Charger Output: 5 VDC/1A
Charger Connector: Micro-USB
Charger Cable length: 1.3 m (4.2 feet) (charging or connection to computer for upgrade, service)
The battery cannot be over-charged. It may become warm during charging.
Important notice: It is recommended to only use the original Phonak charging unit.

Microphones information
Number of microphones:
3 embedded microphones
Type: 3-array microphone
Mode: Automatic, Small Group, Pointing, Lanyard
Accelerometer: Detects and monitors the microphone position, allowing to automatically activate the appropriate microphone mode

Usage information
Touchscreen: 6.1 cm (2.4") colour touchscreen. User interface to activate/deactivate functions

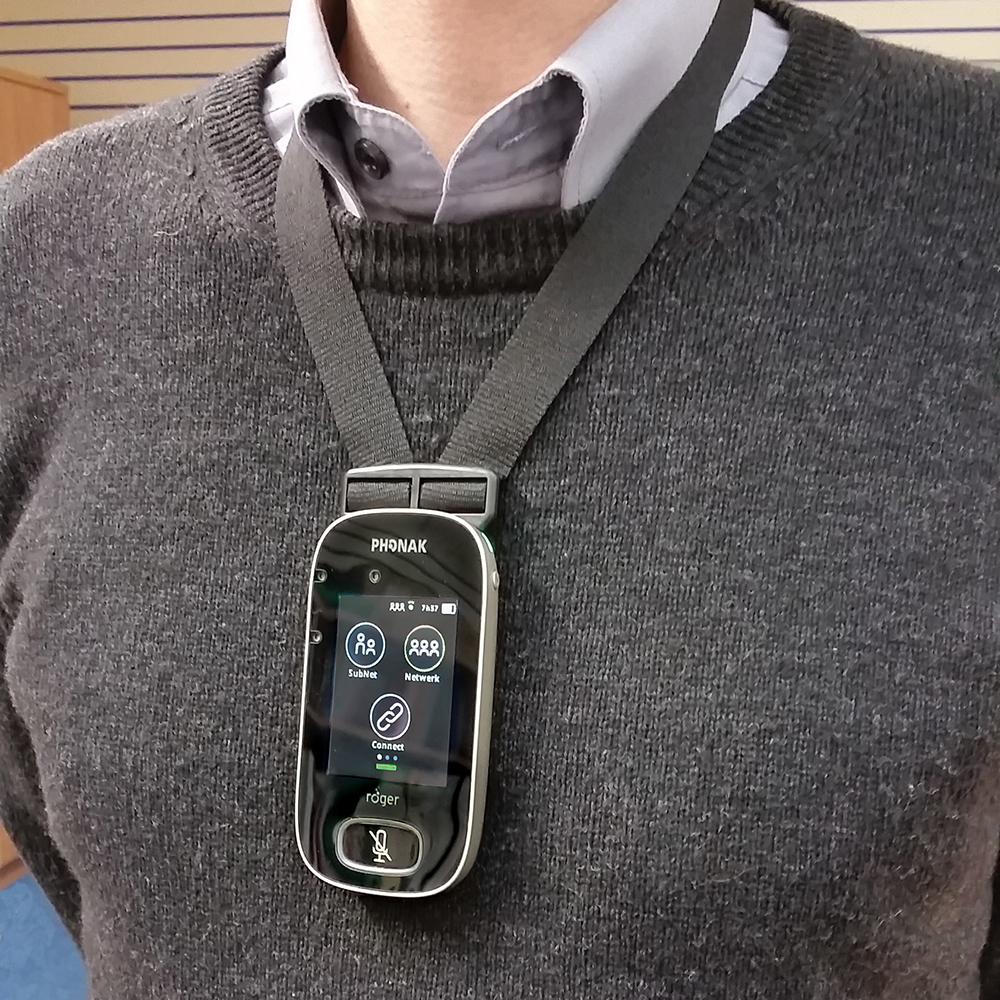

Wearing option: Lanyard worn around neck
Lanyard :
- Clip to easily clip or remove the device from the lanyard
- Clip to adjust length and place the device 20cm (8 inches) away from the talker mouth
- Safety breakaway

Audio information
Audio input and output: Wired (3.5mm jack)
Audio bandwidth: 100 Hz - 7.3 kHz

Roger information
Roger is the new digital standard that bridges the understanding gap, in noise and over distance, by wirelessly transmitting the speaker's voice directly to the listener.
Transmission technology: 2.4 GHz including adaptive automatic frequency hopping
Power emission: 100 mW
Transmission range (clear line of sight, free field): Up to 120 meters / 393 feet (to hearing device with RogerDirect)
Up to 25 meters / 80 feet (to Roger receiver)
Operating range for Connect feature: 10 cm (4")

Compatibility to Roger devices
Compatible Roger receivers: (02) Roger receivers
Number of Roger receivers in use in a Roger network: Unlimited
Compatible Roger microphones: Roger Touchscreen Mic, Roger Pass-around,
Roger inspiro*, Roger DynaMic*
* some new features for Roger Touchscreen Mic might not be available on previous Roger microphones
Number of Roger microphones in use in a Roger network: Up to 35
Compatible Roger hub: Roger Multimedia Hub or Roger inspiro audioHub*
* some new features for Roger Touchscreen Mic might not be available with previous Roger Hub
Number of Roger hub in use in a Roger network: 1x Roger Multimedia Hub
Compatible Roger SoundField: Roger DigiMaster 5000, Roger DigiMaster 7000 , Roger DigiMaster X (software version 4.x or higher)
Number of Roger SoundField in use in a network:
1x Roger DigiMaster 5000
20x Roger DigiMaster 7000
5x Roger DigiMaster X
Compatible Roger WallPilot: Roger WallPilot

Optional Accessories Available
Charging rack (L x W x H): 188 x 75 x 28 mm (7.4" x 2.9" x 1.1") with 4-slots designed to charge up to 4 devices together. It accommodates Roger Touchscreen Mic, Roger Pass-around, Roger Multimedia Hub.
Carry-on case: Designed for Roger Touchscreen Mic
Boom microphone: Head worn boom microphone for Roger Touchscreen Mic.
Belt clip: Belt clip for Roger Touchscreen Mic.
Power supply adapter: UK, AUS

Standards applied
Electrical safety: IEC/ EN 60950-1
Radiocom 2.4 GHz: EN 300 328
EMC: EN 301.489-1,-3,-9,-17
SAR (2.4 GHz): EN 62209-2, SAR 1g = 0.10 W/kg, SAR 10g = 0.05 W/kg

Phonak product code: 056-3034-P5

Click here to view pdf user guide
Click here to view pdf datasheet
Click here to view pdf fast facts
Click here to view the Connevans Checklist
Click here to view the Connevans Courtesy Card
Click here to view how to use the Roger Touchscreen Mic for small groups
Using the Roger Touchscreen Mic and Roger Receivers
Using advanced Roger Touchscreen Mic network options

  Support tip: A blue light around the mute button means that the Touchscreen Mic has lost contact with the primary transmitter in the network.  So this means that it has been previously connected to another transmitter.  The solution is to select “ NewNet” in the menu.  This deletes all the network connections, so you can start again.
