The Lion loop indicator sign from Connevans is the perfect companion for hearing aid loops in public places. Serving a dual purpose, the Lion is both a test device, assuring your staff that the loop is working and also an advertisement to your customers that you have an induction loop that is active and available for use.

A visible positive sign for an invisible disability.

The Lion Intelligent Loop Indicator Sign gives clear visual assurance that the hearing loop system has been turned on and is connected to the sound system - hearing aid users don't want to wait until the start of a presentation or performance to find out that the 'T' loop is not connected!

The Lion, an intelligent illuminated wall sign, uses digital signal processing to monitor the hearing aid induction loop signal in a public place such as a cinema, theatre, church or conference room and will light up when the loop is working.

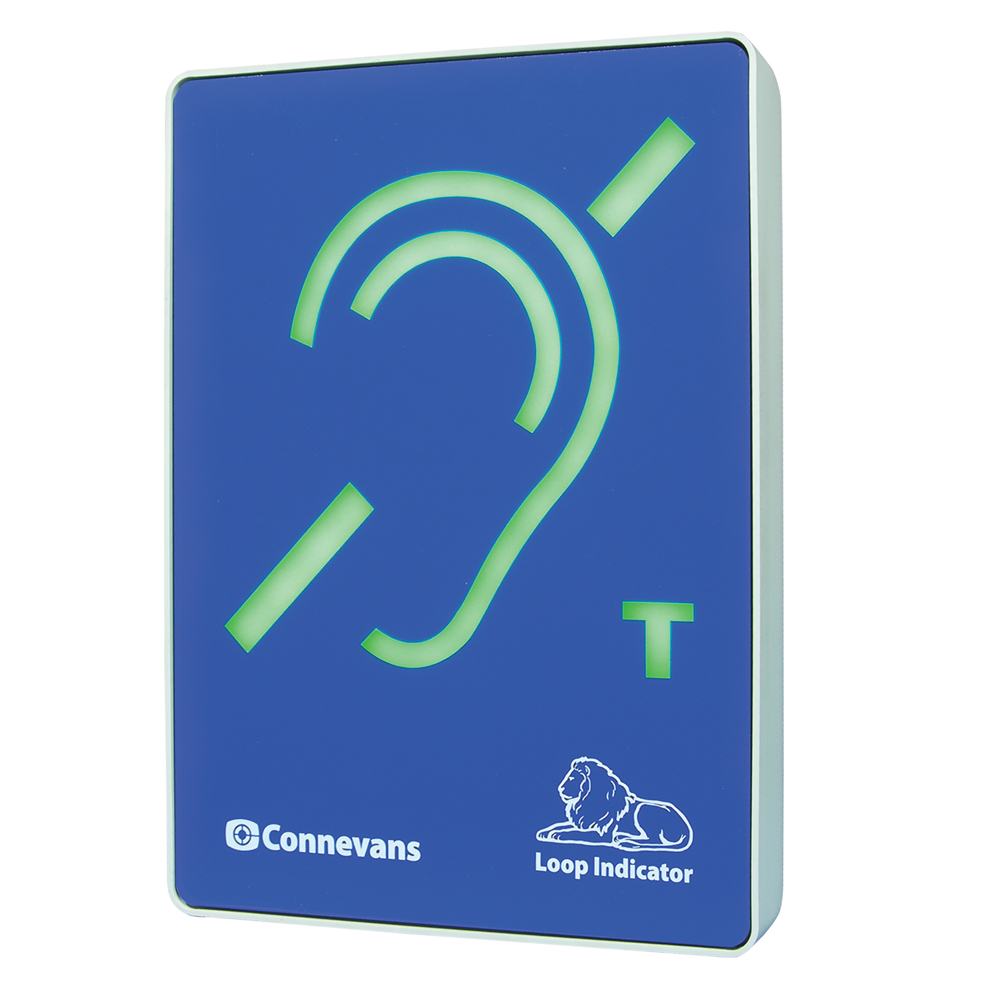

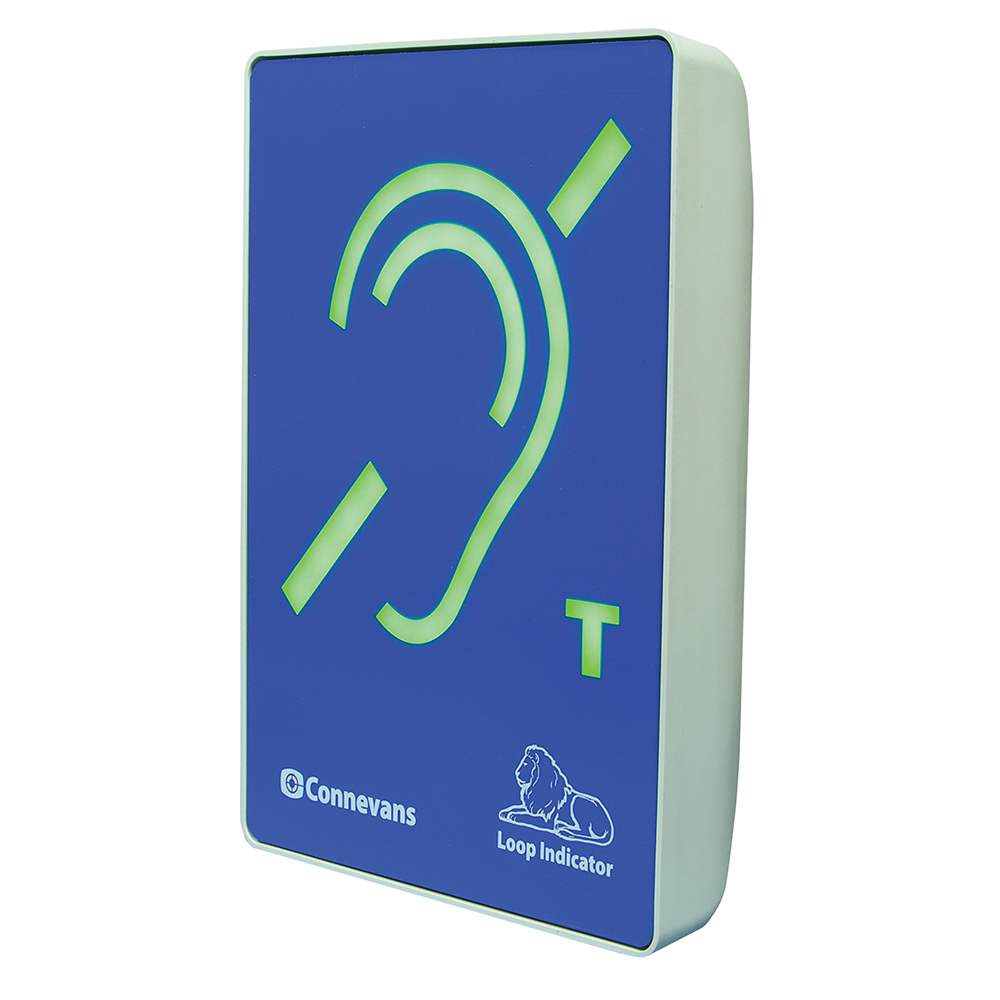

When the sign glows green, hearing aid users can have confidence that they will be able to hear the performance or presentation using the loop program on their hearing aids (sometimes known as a 'T' setting).

The Lion builds confidence in using your loop system - saving staff time and customer queries. Plus, it helps promote the fact that you have a loop installed and will encourage hearing aid users to benefit from your system.

Meeting the Equality Act requirements for providing accessibility for people with disabilities is an important part of any venue's remit. Induction hearing loops for hearing aid users are one of the facilities that are expected to be installed and working. (Connevans note: unfortunately it is not unusual for a public induction loop to be turned off or faulty, unbeknown to the venue staff). It is common practice for venues to perform a sound check before people arrive, if only a quick 'testing, testing 1, 2, 3'. If you also have a Lion installed, your sound check will automatically trigger the Lion as a test of the induction loop.

Once turned on by the loop signal, the Lion will stay lit as long as there is sound being broadcast. Additionally, after the sound system goes quiet, the Lion will stay lit for your selected hold time period - typically half an hour, in order to remain on while people are taking their seats or during an interval or coffee break - since the sign should remain illuminated during that time, otherwise people might think the loop has been turned off.

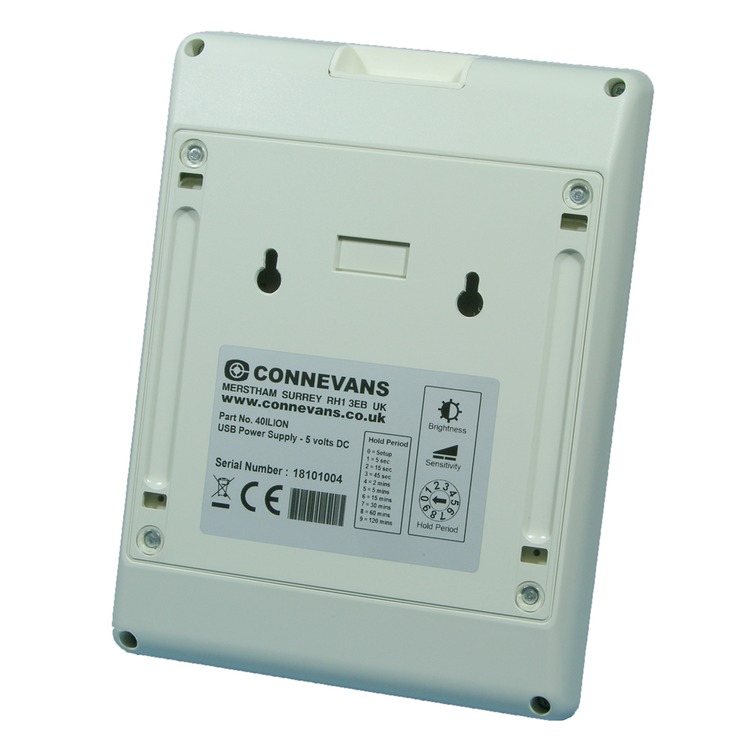

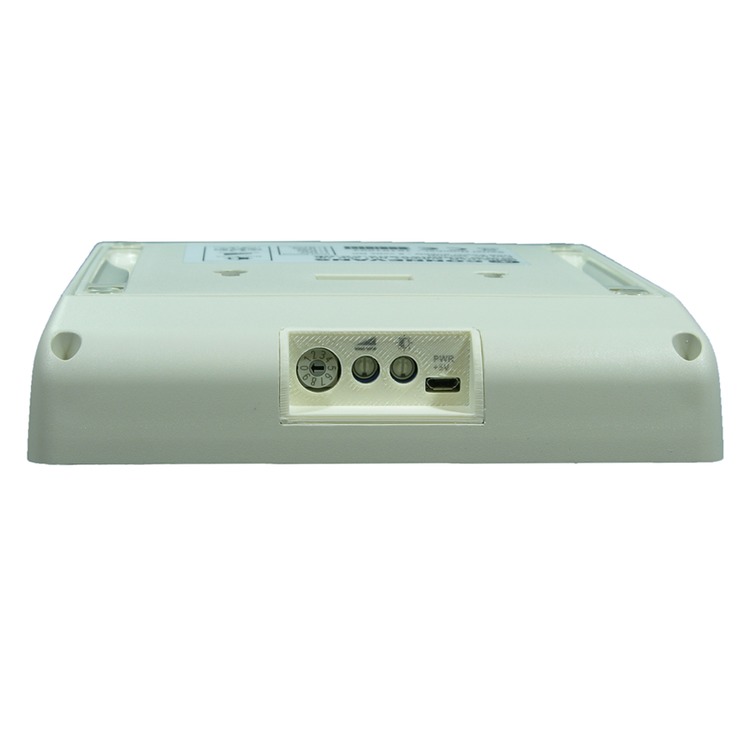

Easy to install using the 2 keyhole wall mounting slots on the back and USB power supply, the Lion is a 'set and forget' solution. Individual controls allow you to adjust the brightness, sensitivity and hold time.

Perfect for use in public places such as theatres, churches, cinemas, museums and meeting venues.

Power supply: 5V micro USB. UK USB psu included with a white & black 1m USB to micro USB lead.

Size: 225 x 166 x 36mm. Requires USB/mains power.

Specifications

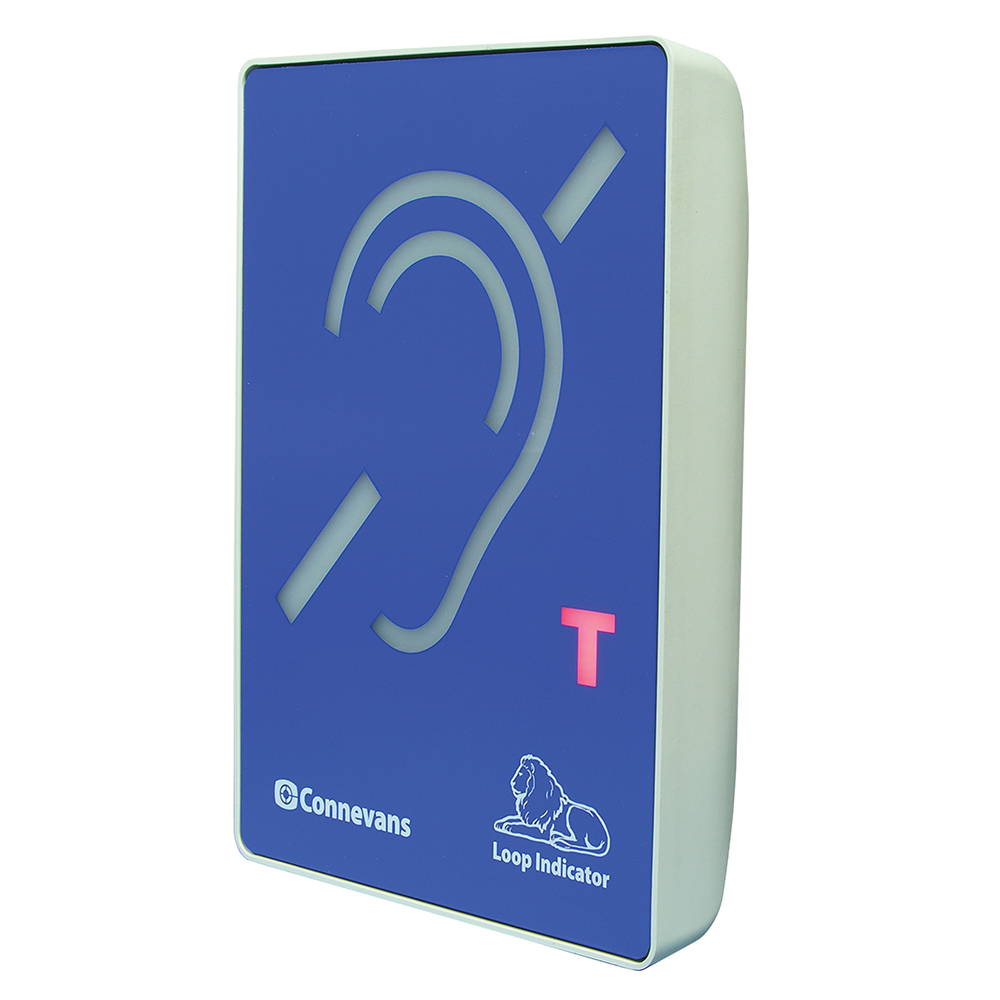

The Loop Indicator has extremely low standby power so does not have a power switch. It is designed to be permanently powered. The “ T” symbol glows red at a low intensity when the unit is in standby mode.

Power: USB 5V
Max current: 300mA (max brightness, all LEDs on)
Max power: 1.5W (max brightness, all LEDs on)
Standby power: 0.05W (<0.3W total including supplied USB power supply)
LED brightness adjustment: 247:1
Number of LED Illuminated segments: 5
Signal strength display range: 15dB
LED segment step size: 3dB
Sensitivity adjustment: -12dB to +25dB re 0.4A/m for all LEDs on (EN 60118-4)
Frequency response: 50Hz to 3000Hz, A weighted
ON time adjustment: 1 second to 2 hours
LED on and off brightness ramp time for programs: 1-9: 2 seconds
Time to auto standby: 2 hours after the last detected magnetic signal

On the default mid setting of the sensitivity control, all the LED segments will show green when the magnetic field strength is around 0.4A/m (EN 60118-4).
