Ex demonstration Trantec S4.10 channel 70 - UHF beltpack transmitter - no microphone supplied.

Any 3.5mm Trantec microphone can be used with this beltpack.

Legacy compatibility information - you can use an S4.10 transmitter with an S4.16 receiver but you cannot use an S4.16 transmitter with an S4.10 receiver.

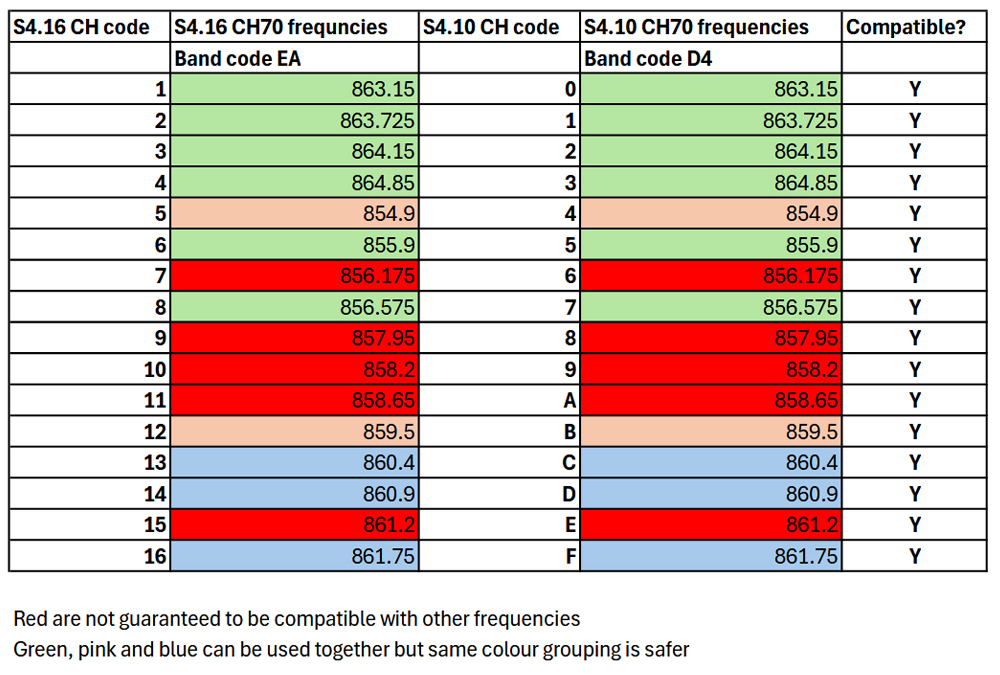

Channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

• 16 selectable frequencies available
• Up to 10 simultaneous channels
• Fully synthesised PLL quartz tuning technology
• Receiver LED’s show AF peak level, RF level & diversity channel A or B
• Diversity operation with detachable antenna
• Professional metal enclosure
• 19” rack mount option for one or two receivers

Trantec product code: channel 70 S4.10-BTX-EB-WD4

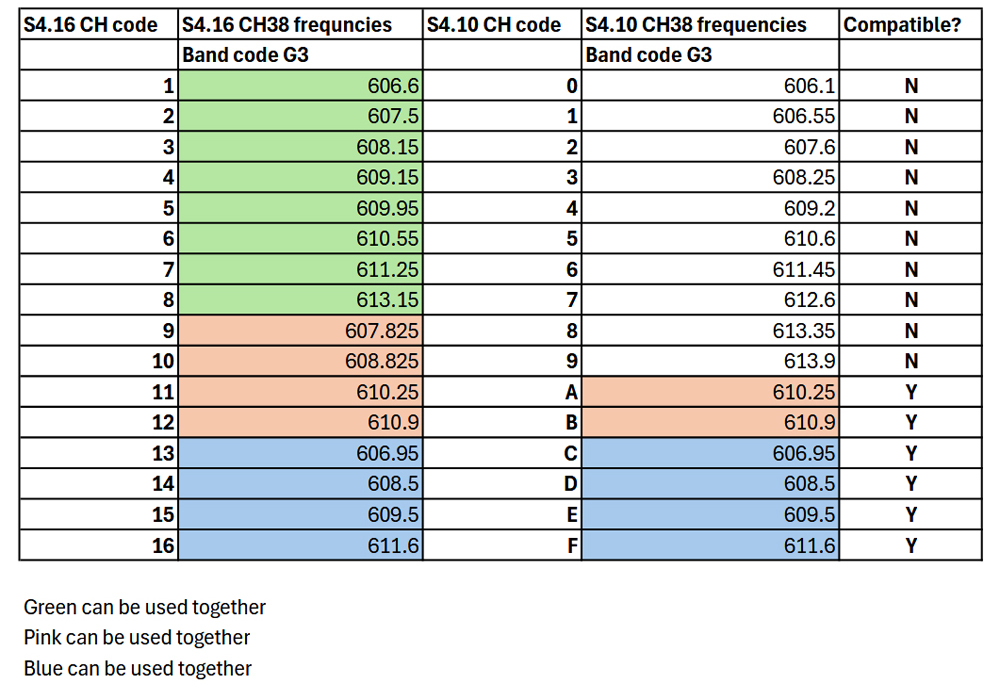

Legacy Trantec compatibility information: a channel 38 S4.10 transmitter can be used as a replacement transmitter with an S4.16 receiver on 6 or the available 16 frequencies so you may need to reallocate the channel frequencies you are currently using. On the S4.16 receiver the channels are numbered 1-16 whilst on the S4.10 transmitter the channels are numbered 0-9 plus A-F.  S4.10 channels A to F are equivalent to S4.16 channels 11 to 16.

Please note that an S4.16 transmitter cannot however be used with an S4.10 receiver.

Click here to view pdf user guide
