Trantec S5.5 UHF Radio Microphone Systems
The S5.5 is the big brother of the successful S5.3 system; it has 35MHz of bandwidth that will enable you to run up to 24 channels simultaneously at a price you will find hard to match.
This unique product will appeal to following markets:- amateur dramatics, audio visual, broadcast, churches, djs, musicians, pro audio, schools, theatres and many many more?
- High quality, true-diversity operation
- Up to 24 Simultaneous Channels
- Frequency scan facility
- USB based computer monitoring
- Integral triple tone grip/noise and signal strength mute circuit
- Simple programming of transmitter with in-built Infra-red
- Clear and intuitive LCD displays on both transmitters and receivers
- Single AA operation of transmitters with battery life of over 10 hours
- Credit card size beltpack transmitters
- Professional metal enclosures for both transmitters and receiver
Systems available:
S5.5HD Handheld Dynamic System
S5.5HC Handheld Condenser System
S5.5L Lavalier System
S5.5LH Headworn Aerobic System
S5.5LHT Headworn Theatre System
S5.5LG Lavalier System
-
Trantec S5.5HD Dynamic Capsule Handheld Radio Microphone System
£726.23 (£605.19 ex VAT)485HDAG1
Trantec S5.5HD Dynamic Capsule Handheld Radio Microphone System
-
Trantec S5.5HC Condenser Capsule Handheld Radio Mic System
£826.72 (£688.93 ex VAT)485HCAG1
Trantec S5.5HC Condenser Capsule Handheld Radio Mic System
-

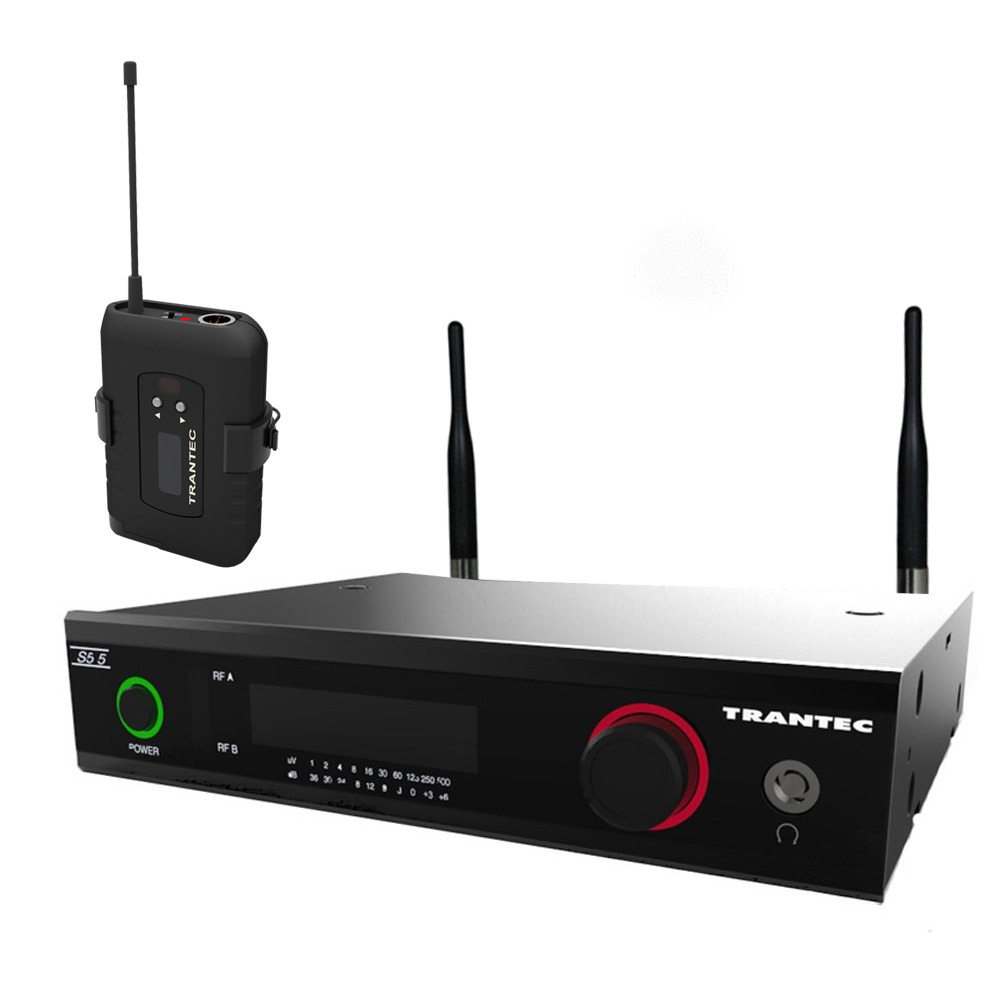

Trantec S5.5B Beltpack Radio Microphone System (no microphone supplied so you can choose your own)
£543.53 (£452.94 ex VAT)485BAG1
Trantec S5.5B Beltpack Radio Microphone System (no microphone supplied)
-
Trantec S5.5L XLP-2 Lapel Radio Microphone System
£584.64 (£487.20 ex VAT)485LG1
Trantec S5.5L radio microphone system with beltpack transmitter & lavalier X2 microphone - channels 38-41 606-638MHz
-

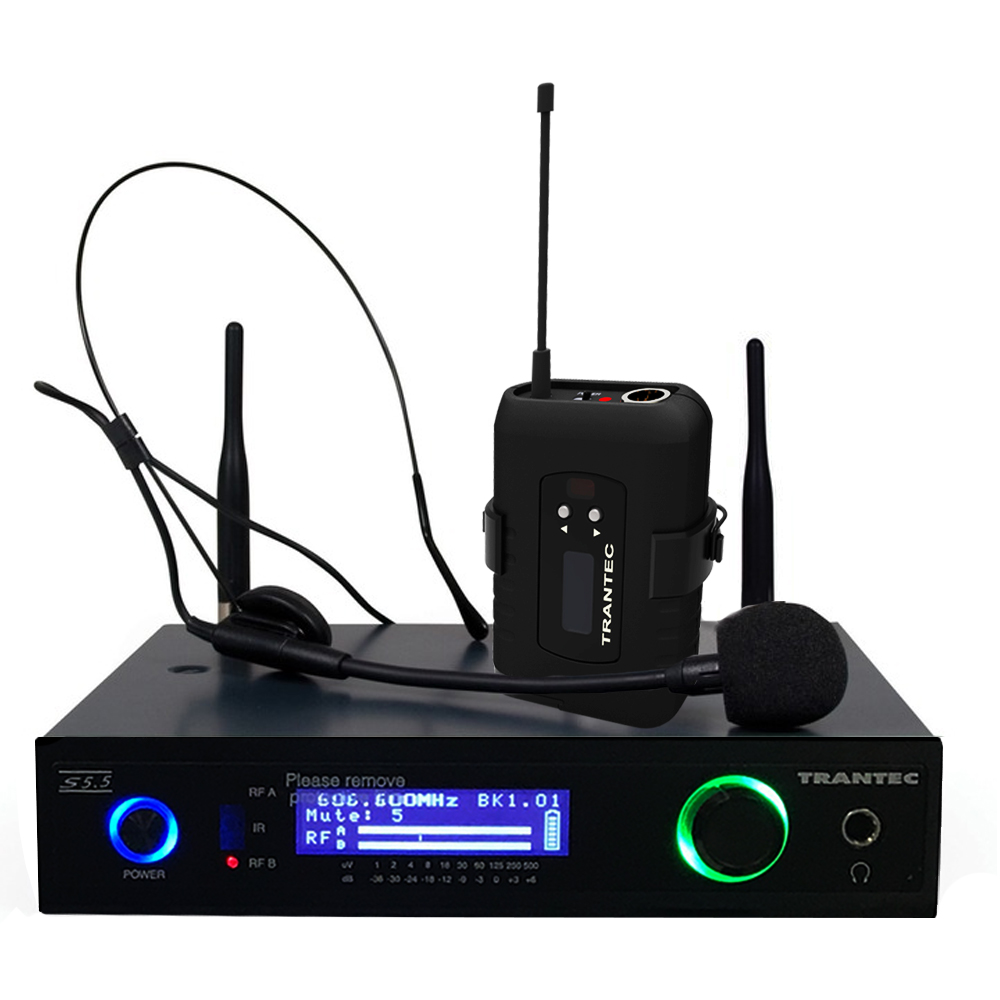

Trantec S5.5A Headset Mic XHM-33 Radio Microphone System
£589.21 (£491.01 ex VAT)485AG1
Trantec S5.5A radio microphone system with X33 headworn microphone for active users - channels 38-41 606-638MHz
-

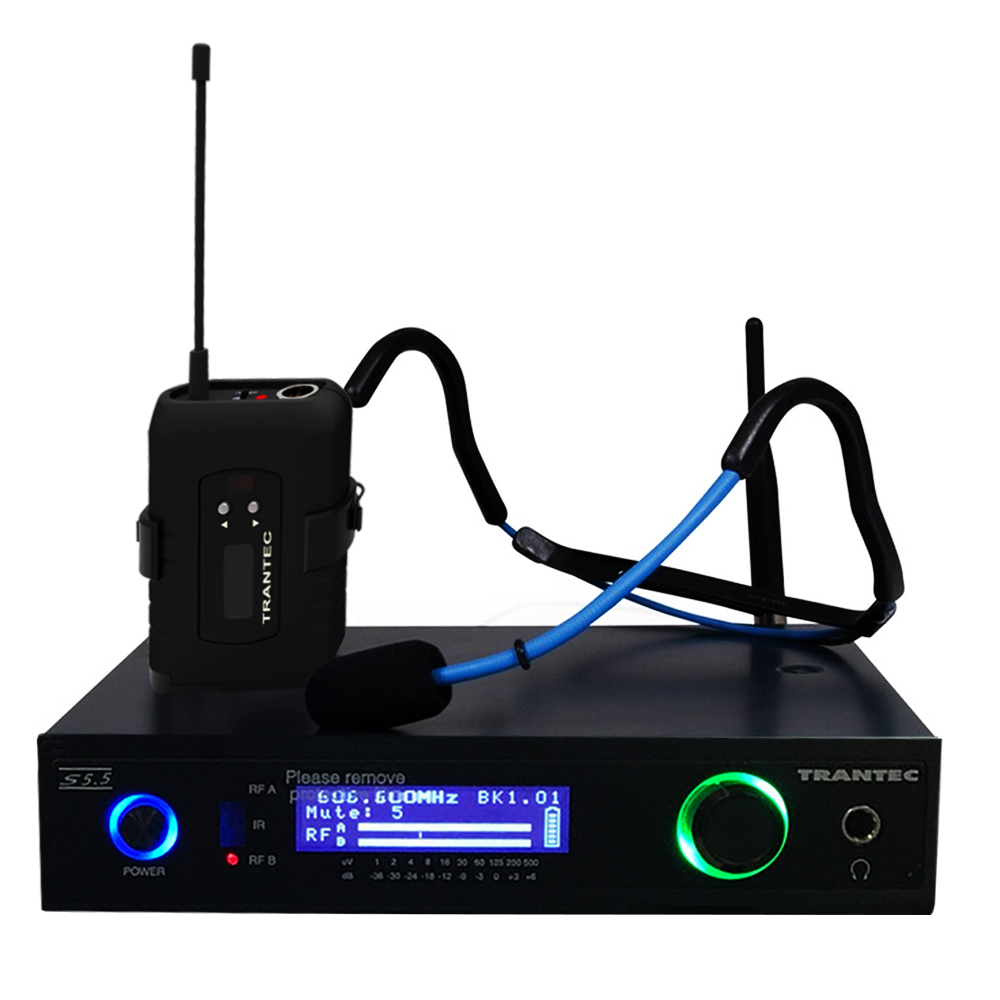

Trantec S5.5W Aerobics XHM-66 Headmic Radio Microphone System
£676.00 (£563.33 ex VAT)485WG1
Trantec S5.5W Aerobics XHM-66 Headmic Radio Microphone System
-

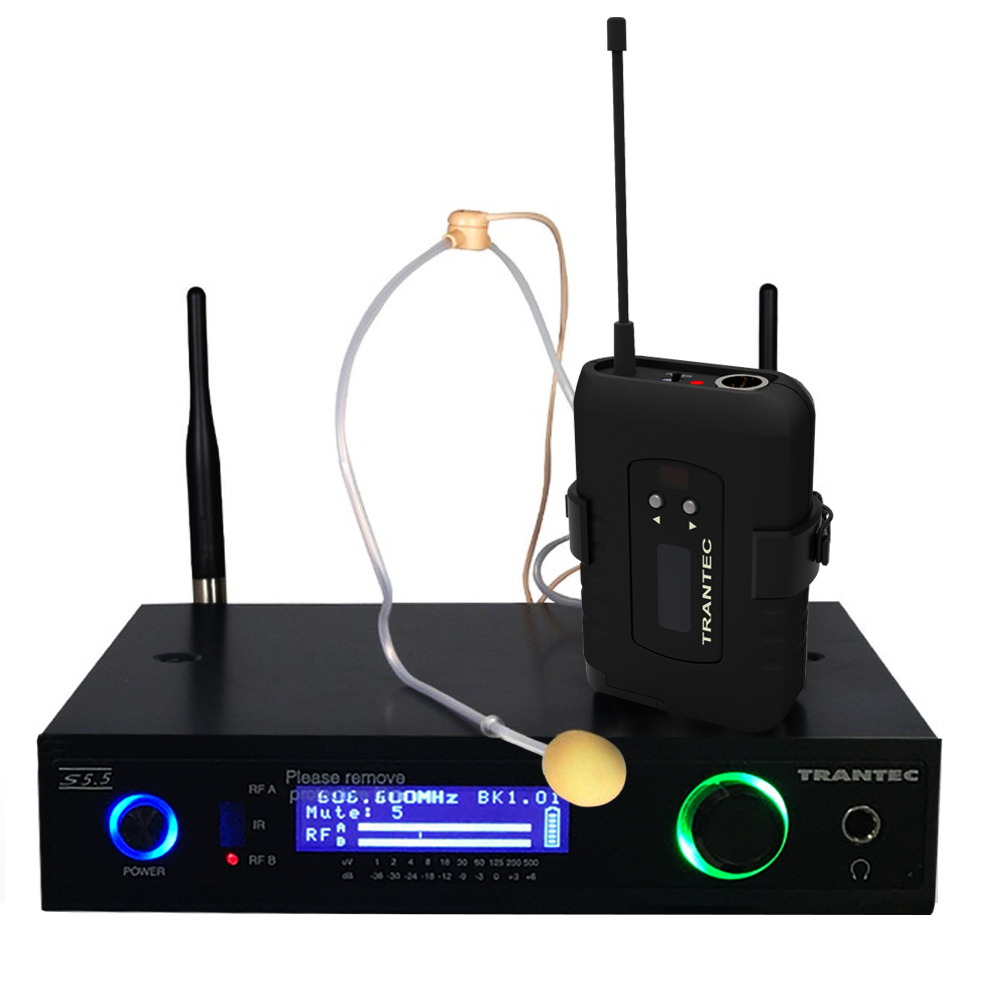

Trantec S5.5T Theatre Use XHM-22 Headmic Radio Mic System
£721.67 (£601.39 ex VAT)485TG1
Trantec S5.5T radio microphone system with X22-P headworn microphone for Theatre use - channels 38-41 606-638MHz
-

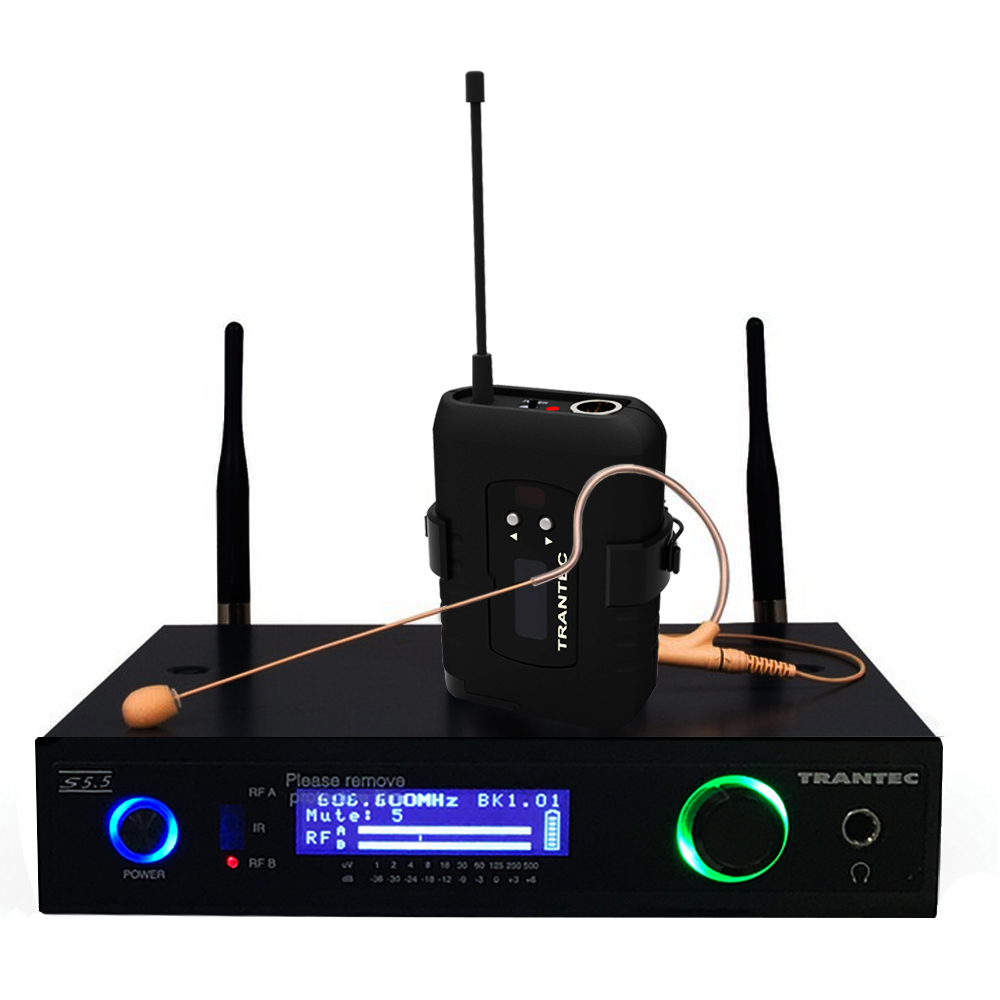

Trantec S5.5E Earworn Mic XEM-77 Radio Mic System
£630.31 (£525.26 ex VAT)485TEG1
Trantec S5.5E Earworn Mic XEM-77 Radio Mic System
-
Trantec 1U, 19inch Rack Mount Kit for two S5 Receivers
£15.00 (£12.50 ex VAT)48ACCS5R2
Trantec 1U, 19inch Rack Mount Kit for two S5 Receivers. This kit will enable you to mount 2 x S5 receivers side by side.
-
Trantec 1U, 19inch Rack Mount Kit for one S5 Receiver
£18.00 (£15.00 ex VAT)48ACCS5R1
Trantec 1U, 19inch Rack Mount Kit for one S5 Receiver with a blanking 1/2 for the other side. This kit will enable you to mount 1 x S5 receiver in a 19inch rack.
-
1U, 19inch Rack Mount Kit for S5 Receiver c/w antenna ext cables
£42.00 (£35.00 ex VAT)48ACCS5R3
Trantec 1U, 19inch Rack Mount Kit for one S5 Receiver with a blanking 1/2 for the other side. Complete with antenna extension cables.
-
4 pin mini XLR microphones for Trantec S5.3 & S5.5 Radio Microphones
Microphones for Trantec S5 & S6 series radio microphones ...
-
Trantec radio mic spares and accessories
we offer a vast range of spares for Trantec radio microphone...
-
Trantec S5.5 Rack'n'Ready & Cube radio microphone systems
This unique, compact, turnkey package will appeal to audio-visual,...
Technical Specification
S5.5 System Specification
| RF Frequency range: | 692-722MHz--Band A1
722-752MHz--Band B1 794-830MHz--Band C1 830-865MHz--Band D3 Other frequency bands available on request |
| AF Frequency response: | 50Hz – 20KHz |
| Dynamic Range: | >110dBA |
S5.5RX Receiver
Fully Synthesised UHF dual conversion Receiver with features including. Graphic LCD, display jog wheel, IR data link and headphone monitor.
| Type: | Dual Diversity featuring PLL Dual conversion receivers |
| IF Freq: | 1st IF 55.875MHz, 2nd IF 10.7MHz |
| Sensitivity: | <1 μV/12dB SINAD |
| 1st Image: | >7dB |
| RSSI range: | 10 steps 30dB range |
| Antenna Inputs: | TNC 50 Ohm |
| AF switches: | Low Cut - High Boost - Phase Reversal |
| Output Level: | XLR Line +15dBm max. XLR Mic -25dBm max.
Unbal 1/4" jack socket +9dBm max |
| Antenna Phantom: | 9V @ 60mA short circuit protected on each RF port |
| Bank Specification: | 10 Banks x 24 Channels |
| Infra-Red Link: | Range 15cm max |
| Computer Interface(USB): | Monitoring of RF, AF and Transmitter Battery status
Full frequency management |
| Rear Panel connections: | RF input,
AF XLR and ¼” Jack output, PC USB port, DC jack. |
| Power Consumption: | 300mA @ 12Vdc nominal |
| Enclosure type: | 19” 1U ½ width Rack. |
S5.5LTX Beltpack Transmitter
Fully Synthesised UHF Transmitters with features including: Integral LCD, IR data link, Battery status indicator, Audio multistage attenuator.
| Battery Life: | 10Hrs Typical, AA Single cell. |
| Beltpack AF connector: | 4 pin mini XLR. |
| Audio Input range: | -20dbm - +7dBm |
| Microphone Bias Voltage: | > 5V |
| RF Bandwidth: | < 200KHz |
| Antenna Type: | ¼ Wave Whip. |
| Enclosure type: | Full metal construction |
S5.5HTXD Handheld Transmitter
Fully Synthesised UHF Transmitters with features including: Integral LCD, IR data link, Battery status indicator, Audio multistage attenuator, Microphone mute switch.
| Battery Life: | 10Hrs Typical, Single AA cell |
| Handheld Cartridge type | High quality directional Dynamic or Condenser capsule. |
| RF Bandwidth: | < 200KHz |
| Antenna Type: | Integral |
| Enclosure type: | Full metal construction |
