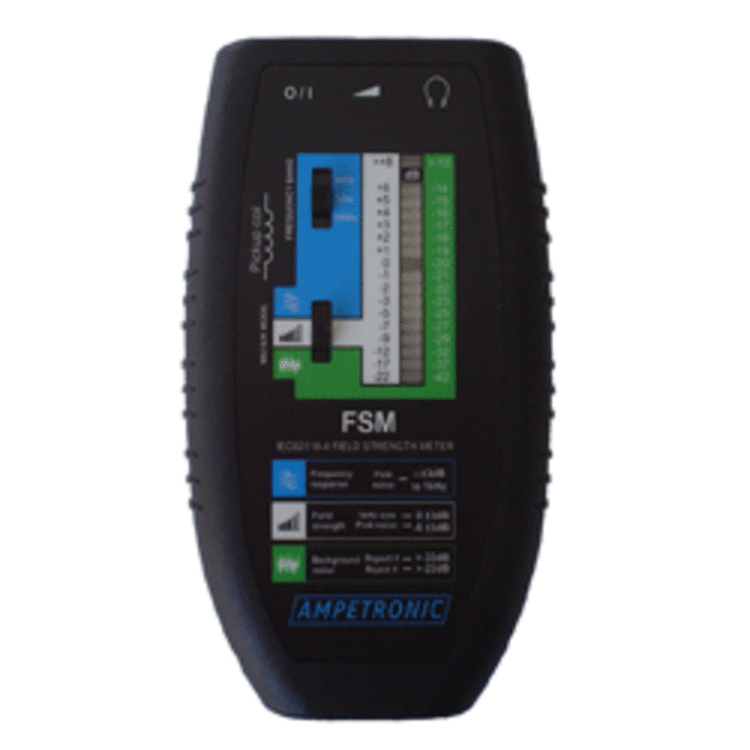

Ampetronic FSM Field Strength meter
Code: 40IFSAMP
£445.44
(£371.20
ex VAT)
Quantity Pricing
2
-
4
£400.90
each
(£334.08
each ex VAT)
5
+
£356.35
each
(£296.96
each ex VAT)
Choose quantity
Please allow 2 or 3 working days for dispatch of this product
Description
The meter is an ergonomically designed, hand held instrument for measuring loop system performance. There are three calibrated operational modes for the assessment of Background Noise, Field Strength and Frequency Response, as required to ensure correct function of the loop system. The meter also doubles as a loop listener, with a headphone output to allow you to listen and subjectively assess the signal in the loop.
The unit is designed to be used by holding it in the same position as the hearing aid will be once the system is operational i.e. hold the unit at head height to take measurements - either seated or standing, depending on the venue.
3 calibrated operational modes:
Background Noise - To determine the level of the
background magnetic field present in the intended location for the
loop system. Also used to measure
low level signals to assess overspill outside a loop
system.
Field Strength - A broad band measurement to measure field strength delivered by the system.
Frequency Response - Third octave filters for measuring performance across the required frequency spectrum as required by IEC60118-4. Used to confirm adequate power at high frequencies as required for good intelligibility. Used to assess frequency dependent loss due to metal structures, and to optimise frequency compensation.
The meter is supplied in a soft case with an audio CD with the required test signals, and full operating instructions, including a guide to commissioning.
The Ampetronic FSM can be used to monitor, set up or commission any induction loop system, regardless of the manufacturer or type.
Details
Features:
- Simple assessment of any system to IEC60118-4:2006
- Three modes of operation for three test types
- A weighted background noise
- Broad band mode (50Hz - 8kHz)
- Frequency response (100Hz, 1kHz, 5kHz)
- True RMS detection calibrated to 00mA/m = 0dB
- Wide viewing angle LED display
- Colour coded LEDs for simple readout
- Resolution to 1dB
- Head phone output with volume control
- Ergonomic, rugged, light weight construction
- Test signals supplied on CD
- Soft carry case
Applications include:
- Accurate set-up and commissioning
- System monitoring and maintenance
- Site surveys
- Certification to IEC60118-4:2006
- Assessment of frequency losses due to metal
- Assessment of loop coverage and overspill
- Assessment of background noise
Reference level: 400mA/m (In Field strength mode)
Frequency response: 50Hz to 8kHz ±0.25dB 30Hz to 10kHz -3dB Gain stability: Better than 0.5dB over all conditions Battery: 2 x AA alkaline LED (supplied)
Battery monitor: Battery OK when LED illuminated
Battery life: Up to 100hrs use, dependent on use pattern Dimension: 84 x 27 x 140mm (meter only)
Weight: 150g excluding batteries
